アルミ同心レジューサー　JIS B2321寸法準用

JIS B2321寸法準用：材質：A5052TD-O

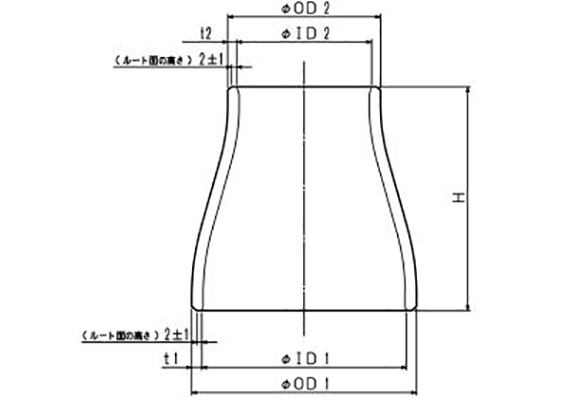

R(C) 同心レジューサー

口径(大OD1)×
口径(小OD2)		 厚さの呼び 外径 厚さ
  端面距離
OD1 OD2 t1 t2 H
20A×15A
 S10S 27.2
 21.7 2.1
 2.1
 38.1
S20S
 2.5 2.5
S40
 2.9 2.8
S80
 3.9 3.7
25A×20A
 S10S 34.0
 27.2 2.8
 2.1
 50.8
S20S
 3.0 2.5
S40
 3.4 2.9
S80
 4.5 3.9
25A×15A
 S10S 34.0
 21.7
 2.8
 2.1
 50.8
S20S
 3.0 2.5
S40
 3.4 2.8
S80
 4.5 3.7
32A×25A
 S10S 42.7
 34.0 2.8
 2.8
 50.8
S20S
 3.0 3.0
S40
 3.6 3.4
S80
 4.9 4.5
32A×20A
 S10S 42.7
 27.2 2.8
 2.1
 50.8
S20S
 3.0 2.5
S40
 3.6 2.9
S80
 4.9 3.9
32A×15A
 S10S 42.7
 21.7 2.8
 2.1
 50.8
S20S
 3.0 2.5
S40
 3.6 2.8
S80
 4.9 3.7
40A×32A
 S10S 48.6
 42.7 2.8
 2.8
 63.5
S20S
 3.0 3.0
S40
 3.7 3.6
S80
 5.1 4.9
40A×25A
 S10S 48.6
 34.0 2.8
 2.8
 63.5
S20S
 3.0 3.0
S40
 3.7 3.4
S80
 5.1 4.5
40A×20A
 S10S 48.6
 27.2 2.8
 2.1
 63.5
S20S
 3.0 2.5
S40
 3.7 2.9
S80
 5.1 3.9
50A×40A
 S10S 60.5
 48.6 2.8
 2.8
 76.2
S20S
 3.5 3.0
S40
 3.9 3.7
S80
 5.5 5.1
50A×32A
 S10S 60.5 42.7 2.8
 2.8
 76.2
S20S
 3.5 3.0
S40
 3.9 3.6
S80
 5.5 4.9
50A×25A
 S10S 60.5
 34.0 2.8
 2.8
 76.2
S20S
 3.5 3.0
S40
 3.9 3.4
S80
 5.5 4.5
50A×20A
 S10S 60.5
 27.2 2.8
 2.1
 76.2
S20S
 3.5 2.5
S40
 60.5
 27.2 3.9 2.9
 76.2
S80
 5.5 3.9
65A×50A
 S10S 76.3
 60.5 3.0
 2.8
 88.9
S20S
 3.5 3.5
S40
 5.2 3.9
S80
 7.0 5.5
65A×40A
 S10S 76.3
 48.6 3.0
 2.8
 88.9
S20S
 3.5 3.0
S40
 5.2 3.7
S80
 7.0 5.1
65A×32A
 S10S 76.3
 42.7 3.0
 2.8
 88.9
S20S
 3.5 3.0
S40
 5.2 3.6
S80
 7.0 4.9
80A×65A
 S10S 89.1
 76.3 3.0
 3.0
 88.9
S20S
 4.0 3.5
S40
 5.5 5.2
S80
 7.6 7.0
80A×50A
 S10S 89.1
 60.5 3.0
 2.8
 88.9
S20S
 4.0 3.5
S40
 5.5 3.9
S80
 7.6 5.5
80A×40A
 S10S 89.1
 48.6 3.0
 2.8
 88.9
S20S
 4.0 3.0
S40
 5.5 3.7
S80
 7.6 5.1
90A×80A
 S10S 101.6
 89.1 3.0
 3.0
 101.6
S20S
 4.0
 4.0
S40
 5.7 5.5
S80
 101.6
 89.1 8.1 7.6
 101.6
100A×90A
 S10S 114.3
 101.6 3.0
 3.0
 101.6
S20S
 4.0 4.0
S40
 6.0 5.7
S80
 8.6 8.1
100A×80A
 S10S 114.3
 89.1 3.0
 3.0
 101.6
S20S
 4.0 4.0
S40
 6.0 5.5
S80
 8.6 7.6
100A×65A
 S10S 114.3
 76.3 3.0
 3.0
 101.6
S20S
 4.0 3.5
S40
 6.0 5.2
S80
 8.6 7.0
100A×50A
 S10S 114.3
 60.5 3.0
 2.8
 101.6
S20S
 4.0 3.5
S40
 114.3
 60.5
 6.0 3.9
 101.6
S80
 8.6 5.5
125A×100A
 S10S 139.8
 114.3 3.4
 3.0
 127.0
S20S
 5.0 4.0
S40
 6.6 6.0
S80
 9.5 8.6
125A×80A
 S10S 139.8
 89.1 3.4
 3.0
 127.0
S20S
 5.0 4.0
S40
 6.6 5.5
S80
 9.5 7.6
125A×65A
 S10S 139.8
 76.3 3.4
 3.0
 127.0
S20S
 5.0 3.5
S40
 139.8
 76.3
 6.6 5.2
 127.0
S80
 9.5 7.0
150A×125A
 S10S 165.2
 139.8 3.4
 3.4
 139.7
S20S
 5.0 5.0
S40
 7.1 6.6
S80
 11.0 9.5
150A×100A
 S10S 165.2
 114.3 3.4
 3.0
 139.7
S20S
 5.0 4.0
S40
 7.1 6.0
S80
 11.0 8.6
150A×80A
 S10S 165.2
 89.1 3.4
 3.0
 139.7
S20S
 5.0 4.0
S40
 165.2
 89.1
 7.1 5.5
 139.7
S80
 11.0 7.6
200A×150A
 S10S 216.3
 165.2 4.0
 3.4
 152.4
S20S
 6.5 5.0
S40
 8.2 7.1
S80
 12.7 11.0

■表示は受注生産品

□表示は在庫品

詳しくはお見積・お問合せ下さい。
